1092Kraft paper machine
1092Kraft paper machine
summary: Kraft paper because of its high strength and durability, usually used to make paper bags, envelopes, packaging materials, etc. Kraft paper machine is a complex and sophisticated equipment system, which mainly includes raw material processing, pulp manufacturing, paper making, post-processing and other steps.
keyword: paper machine|paper machinery|papermaking equipment|1092Kraft paper machine
subcategory: Kraft paper machine
subcategory: +86 138 3914 4000
Video
Details

How the paper machine works

The working principle of the paper machine is mainly realized through the following parts: paper supply, stock distribution, dehydration, pressing, drying, pressing, rolling paper.

1. Paper feed part: The paper raw material is cut to the appropriate size and sent through a series of conveyor belts to the next stage.

2. Pulp distribution part: The pulp is screened on a rotating screen, and chemicals are added to improve its quality.

3. Dehydration stage: Water is removed from the pulp by high pressure and high speed rotation.

4. Pressing and drying: the pulp is compressed and further dehydrated.

5. Calender: Use high pressure and high temperature to smooth the paper and improve its quality.

6. Roll the paper: Roll the paper to the appropriate length and cut it.

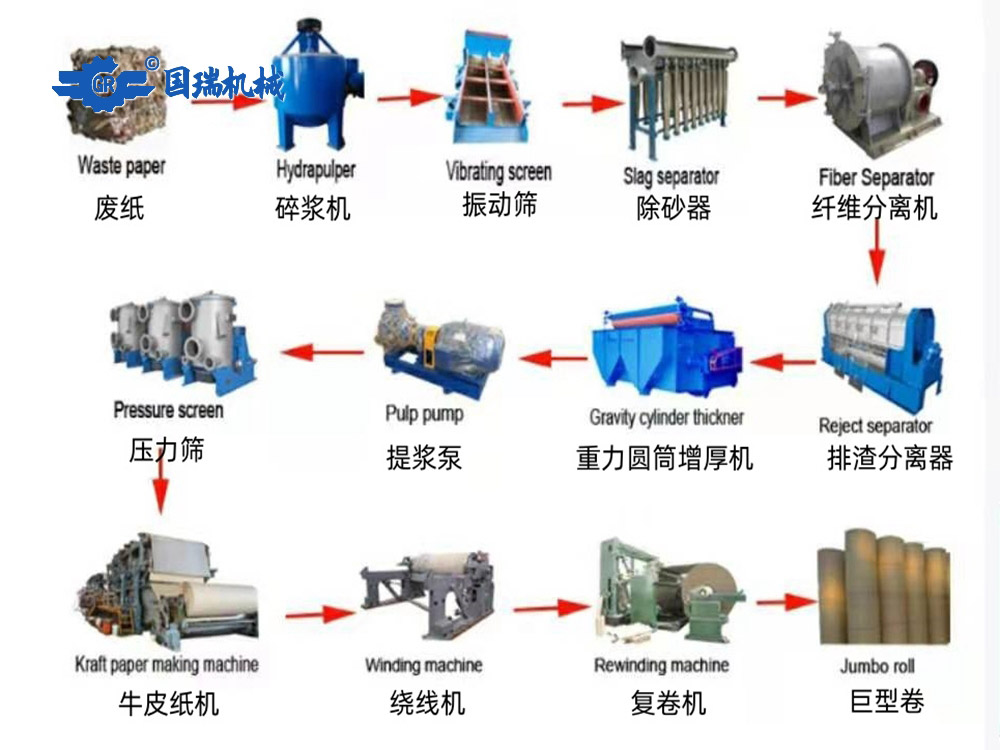

The advantages of paper machines lie in their efficiency and flexibility. In addition, paper making machinery includes raw material preparation, pulping, paper making, until the production of rolled or flat finished products, as well as processing paper and board machinery, covering the entire production process from raw materials to finished products.








Production   Name1092 Kraft paper Production line
Number1092
Output   paperKraft paper /corrugated paper
Daily   Capacity4-6T/D
Raw   materialwaster paper
Net   Paper Width1100-1200mm
Product   weight(GRM)100-150g/m²
Design   Speed80-140m/min
Work   speed60-120m/min
speed   regulation modeVVVF
pulp   distributing wayCircular arc plate of garden net
Press   Dehydration waydryer roller
drying   waysteam
Installation   wayleft and right model
class   people5-6people/class
